All-round robot kit for education/robot competitions/entertainment that you can build various types of robot such as Spider, Dinosaur, and Humanoid.

Description Bioloid STEM Bioloid Premium Bioloid GP
Main Image


Main
Controller		 CM-530 CM-530 CM-530
DYNAMIXEL
(servomotor)		 AX-12W : 2EA
AX-12A : 4EA		 AX-12A : 18EA AX-12A : 6EA(Upper Body),
2EA(Gripper), AX-18A :10EA(Lower Body)
Sensor

IR-Array, IR Sensor

 GYRO, DMS, IR GYRO, DMS
S/W RoboPlus RoboPlus RoboPlus
Power 6x "AA" or "LR6" LIPO 11.1V, SMPS 12V 5A LIPO 11.1V, SMPS 12V 5A
Remote
Control		 RC-100A
ZIG-110A set (optional)
BT-110A set (optional)		 RC-100A
ZIG-110A set (optional)
BT-110A set (optional)		 RC-100A
ZIG-110A set (optional)
BT-110A set (optional)
Manual Workbook (16 sample robots) Quick Start (3 robots)
e-manual (26 robots)		 Quick Start (1 robot+Gripper)
e-manual
Usage Education (School) Competition Education(School/Univ.)
Competition/Entertainment 		Competition(School/Univ.)
Entertainment
Purchase
You can build any kinds of robot with Dynamixel, a robot servo motor from ROBOTIS Co., Ltd., (provided in Bioloid Premium kit) The Assembly manual for 29 example robots and programs are included.
Required parts to build a robot are all included in Bioloid Premium kit, you can immediately build your own robot system.
Bioloid includes gyro sensor, DMS, and multi-channel wireless expendable remote controller.
(Based on Premium Kit) Please make sure that it is easy to insert and take out the batteries; the cables are arranged safely; it has outstanding compatibility.

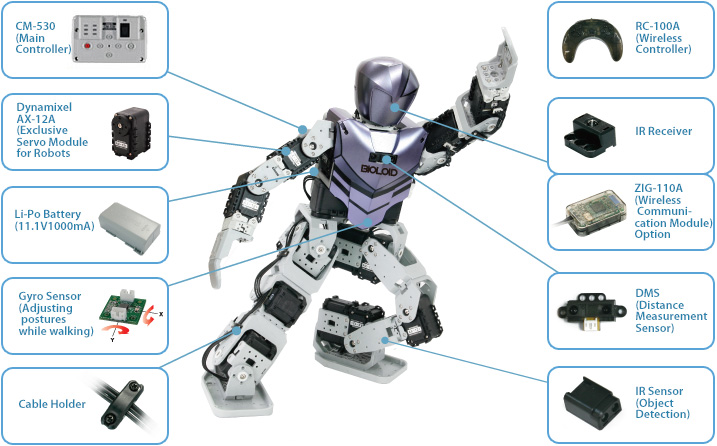

① Excellent walking humanoid (Self-Adjusts posture while walking)
② Various sensors including Gyro, DMS and IR
③ RC-100A(Remote Controller) is included (IR-default, Zigbee/Bluetooth-optional)
④ C-style programming & motion teaching with RoboPlus S/W (USB interface included)
⑤ Semitransparent humanoid skin for customization

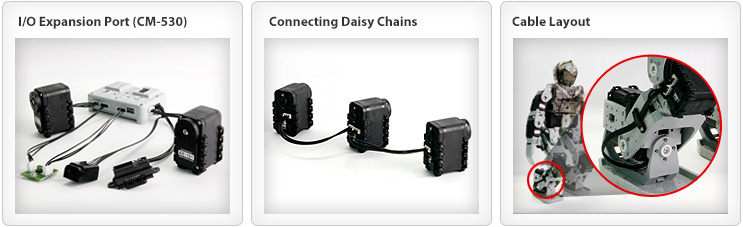

⑥ Digital packet communication with daisy chain topology
⑦ Build various robots through versatile expansion mechanism
- CM-530 Main Controller (ARM Cortex M3 / 32bit) x 1pc
  * CPU : ARM Cortex (32bit)
  * Internal I/O Device : 6 button, MIC, Temperature Sensor, Voltage Sensor
  * External I/O Device : OLLO Compatible 5pin I/O port x 6
                     AX/MX-Series DYNAMIXEL Connector x 5
- DYNAMIXEL AX-12A (Robot Exclusive Actuator) x 18pcs
  * Stall Torque : 1.5N.m (at 12V, 1.5A)
  * No Load Speed : 59PRM (at 12V)
- Gyro Sensor (2 Axis) x 1 pc
- DMS x 1 pc
- IR Sensor x 2 pcs
- RC-100A (Remote Controller) x 1 pc
- Head & Chest Skin x 1 set
- LIPO Battery (11.1V, 1000mA/PCM) x 1 pc
- LIPO Balance Battery Charger
- SMPS for External Power (12V, 5A)
- Screw Driver, Cable Holder
- Mini USB Cable
- Plastic Frame Set
- QuickStart Book
- RoboPlus Software CD
